Union 2277 – 3 Lever Mortice Sash Lock

Name: Union 2277 - 3 Lever Mortice Sash Lock
SKU: 2277
Availability: InStock

Availability:

5 in stock

د.إ85.00 VAT 5%

5 in stock

For timber doors hinged on the left or right
Keys are suitable for use on doors up to 54mm thick
Deadbolt locked or unlocked by key from either side
Latch bolt withdrawn by lever handle from either side
May be keyed alike with 2077, 2157, 2177 and 2477 (not 51mm case)
Pierced to accept bolt through furniture
NB:?Not suitable for master keying
Reversible latch bolt
Available with square forend and striking plate

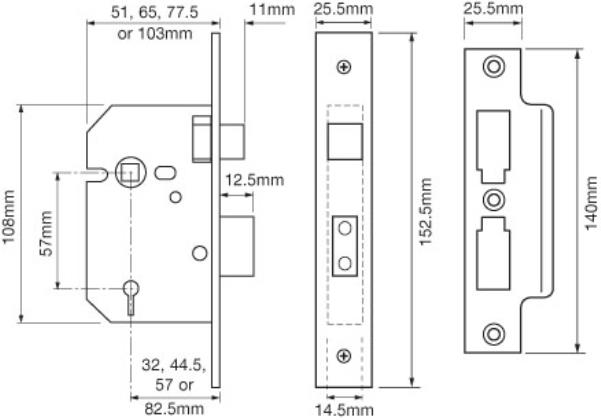

Case Size: 51mm (2″), 65mm (2.5″), 77.5mm (3″), or 103mm (4″)
Backset: 32mm, 44.5mm, 57mm or 82.5mm
Case: Steel, silver powder coat
Forend: Stainless steel or brass
Striking Plate: Finished to match forend
Deadbolt: Brass, hardened steel rollers
Latch Bolt: Brass, reversible
Follower: Brass, 8mm square
Rebate Kit: 2979 (13mm, 19mm or 25mm)
Keying Groups: May be supplied to pass, differ and keyed alike with 2077, 2157, 2177 and 2477. Supplied with 2 steel nickel plated keys
Key Blank Number: KB436
?Keying: 2″ = 36 standard differs (M1M – M36M) 2.5″, 3″ & 4″ = 100 standard differs (M101M?- M200M)Available in SC, PL and CH finishes
SC – Satin Chrome finish
PL – Polished Brass finish
CH – Polished Chrome finish (2.5″ only)

SKU: 2277 Category: Mortise Lock 3 Lever Tag: Mortise Lock
